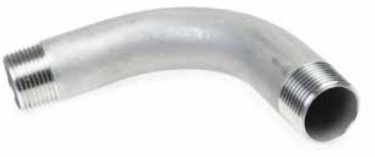

Threaded bend

SCHIEMA 90° threaded bend for reliable connections

Are you looking for a high-quality 90° threaded bend for your piping system? At SCHIEMA, you will find a complete and versatile range of threaded bends that connect perfectly to your specific technical installations. Whether you need to make a connection in a confined space or within a larger industrial network, our threaded bends ensure a highly reliable and stable angled connection of exactly 90 degrees.

Technical specifications and precise dimensions

The threaded bends in our range are produced to strict tolerances to guarantee a perfect fit. You can choose from a wide range of diameters and lengths. The smallest version starts with a diameter of 10.20 mm and a length of 50.00 mm. For larger installations, sizes go up to a diameter of 88.90 mm with a corresponding length of 290.00 mm. Thanks to these detailed dimensions, the threaded bend always connects seamlessly to the rest of your pipework.

Complete range of threaded bends available from stock

The complete SCHIEMA range includes all common sizes you need for your project. We supply the 90° threaded bend in the following versions: 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1.1/4", 1.1/2", 2", 2.1/2" and 3". These come with specific outside diameters such as 13.50 mm, 17.20 mm, 21.30 mm, 26.90 mm, 33.70 mm, 42.40 mm, 48.30 mm, 60.30 mm and 76.10 mm, with lengths ranging from 60.00 mm to 240.00 mm. Choose the professional quality of SCHIEMA and find the perfect threaded bend for your specific application today.
