Hose Clamp Cast Iron Type Hercules Brand Lüdecke
Variants
There are multiple versions of this product. If you are unsure which one you need, please contact one of our specialists.
Variants
| Item number | Min. clamping range mm | Max. clamping range mm | Weight kg | Request |
|---|---|---|---|---|
| 8332020029 | 22 | 29 | 0.13 | |
| 8332028035 | 28 | 34 | 0.14 | |
| 8332032040 | 32 | 40 | 0.19 | |
| 8332039049 | 39 | 49 | 0.25 | |
| 8332048060 | 48 | 60 | 0.29 | |
| 8332060076 | 60 | 76 | 0.39 | |
| 8332077094 | 77 | 94 | 0.54 | |
| 8332094115 | 94 | 115 | 0.71 | |
| 8332113127 | 113 | 127 | 0.90 |
Description
Two-piece, heavy-duty design, with loose tongues, suitable for assembly with air couplings DIN 3238 and DIN 3489.
Product information
| Product specifications | Testmethode | ||
|---|---|---|---|
| Norm | DIN 20039 A | ||
| Construction | Testmethode | ||
|---|---|---|---|
| Material | cast iron | ||
Related documentation
Download voor meer informatie onderstaande documenten
Related products
Hose Clamp 2-Ear Pinch Clamp
Worm Drive Clamp Steel with Aluminium-Zinc Alloy Brand ABA
Clamp Band System Pa-Ri Type 1 1-Piece Stainless Steel (1.4301)
Clamp Band System Pa-Ri Type 1 1-Piece Galvanised Steel
Clamp Band System Pa-Ri Type 1A 2-Piece Stainless Steel (1.4301)
Clamp Band System Pa-Ri Type 1A 2-Piece Galvanised Steel
Clamp Band System Pa-Ri Type 2A 2-Piece Galvanised Steel
Worm Drive Clamp Stainless Steel Brand MIKALOR
Hose Clamp Supra Brand Mikalor Stainless Steel (Band/Housing) Steel (Screw)

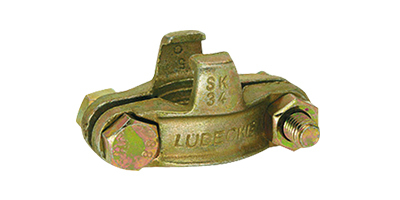

Hose Clamp with Locking Claw Cast Iron Type Hercules Brand Lüdecke
